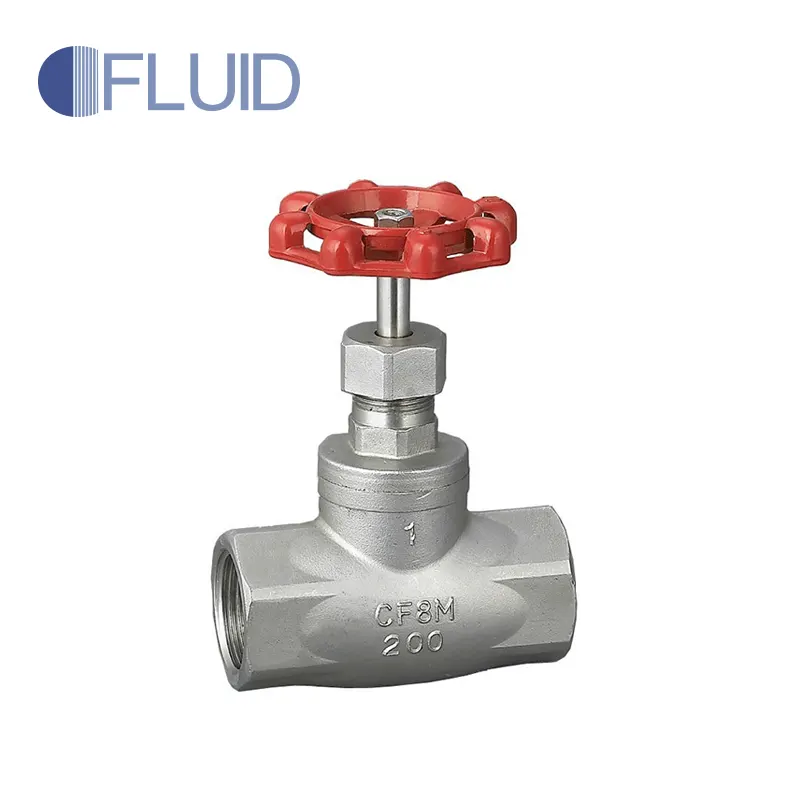

CENTROFLOW supplied Threaded End Globe Valve is designed & manufactured according to relative BS, ISO, API standards. It is a linear-motion valve characterized by a body with longer face-to-face that accommodates follow passage sufficiently long enough to ensure smooth flow through the valve without any sharp turns. CENTROFLOW ‘s Threaded End Globe Valves can be used in both on-off and throttling applications， ideally suitable for water, air, steam, oil and gas services. For more details of this CentroFlow standard Forged Steel Globe valve, please just contact us without delay.
CENTROFLOW supplies Threaded End Globe Valve is available 1/2~2 in(DN 15 to DN 50), 316L Stainless Steel NPT Rising Stem. End to end connection in according to ANSI B16.5 . Made of casting steel ASTM F316. The maximum working pressure is 1600Psig with temperatures of up to 180ºC. Stellite hardened stainless steel seat. Bolt-on bonnet. Indicated for conducting and strangling the passage of aqueous media, oil and gas. testing according to API 598. Futther material available: carbon steel, high-temperature alloy steel, stainless steel, low temperature steel, and special alloys etc, with CE and BV certificate.
Threaded End Globe Valve Features:
Thread, NPT thread as per ANSI B16.5
Constr. stainless steel CF8M (316) investment casting.
Seals: PTFE: gas threaded ends ISO 7-1 (EN 10226-1).
Max. pressure: 16 BAR at 120ºC - 10 BAR at 180ºC.
Testing:API 598
|
NO |
Name |
Material |
|---|---|---|
|
1 |
Body |
Stainless Steel 1.4408 |
|
2 |
Disc |
Stainless Steel 1.4408 |
|
3 |
Stem |
Stainless Steel AISI 316 |
|
4 |
Body Gasket |
PTFE |
|
5 |
Cap |
Stainless Steel 1.4408 |
|
6 |
Washer |
Stainless Steel AISI 316 |
|
7 |
Nut |
Stainless Steel AISI 304 |
|
8 |
Washer |
Stainless Steel AISI 304 |
|
9 |
Handwheel |
Alluminium |
|
10 |
Packing nut |
Stainless Steel AISI 316 |
|
11 |
Stem packing |
PTFE |
|
SIZE |
|
R |
A(OPEN) |
L |
V |
WEIGHT(KG) |
|---|---|---|---|---|---|---|
|
1/2" |
16 |
1/2" |
97 |
65 |
70 |
0.380 |
|
3/4" |
16 |
3/4" |
103 |
75 |
70 |
0.600 |
|
1” |
16 |
1” |
116 |
90 |
80 |
0.850 |
|
1 1/4" |
16 |
1 1/4" |
135 |
105 |
80 |
1.365 |
|
1 1/2" |
16 |
1 1/2" |
152 |
120 |
100 |
1.880 |
|
2” |
16 |
2” |
164 |
140 |
100 |
2.680 |
