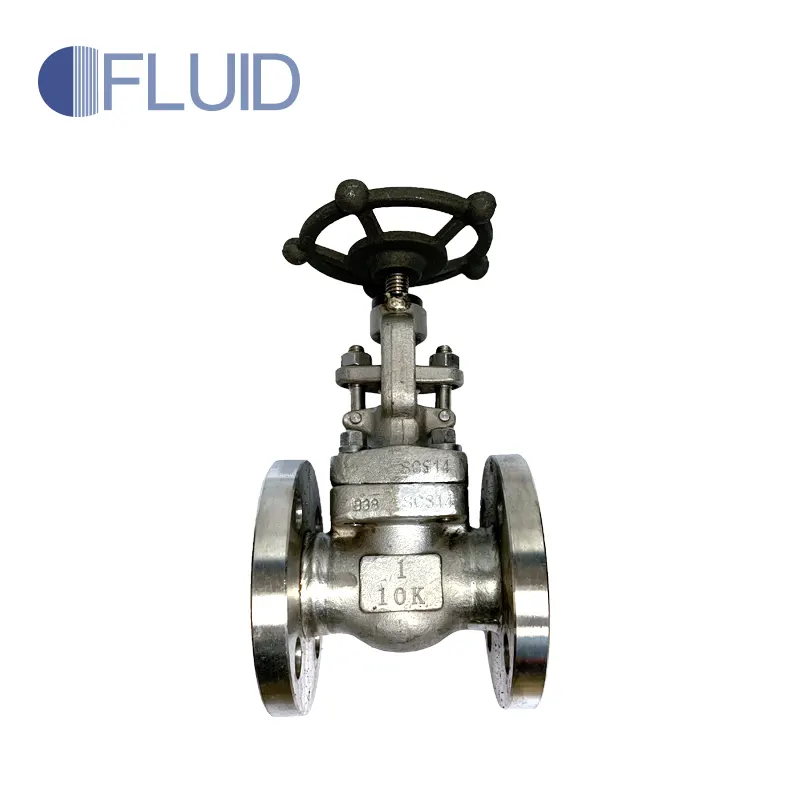

CentroFlow made Forged Steel Flanged Globe Valve is with 150RF, A182 Forged Steel Body & Bonnet. Outside Screw & Yoke, Plug Type Disc, Rising Handwheel Operated, Design to API 602 Rated CL150. More information of this CentroFlow standard Forged Steel Globe valve, please just contact us without .delay.
CENTROFLOW supplies Forged Steel Flanged Globe Valve is available in class 150 / 300 / 600 |/900 / 1500/2500 and flanges according to ANSI B16.5 . Made of forged steel ASTM A182 , the range of dimensions is from DN 15 to DN 40. The maximum working pressure is 25 bar and it can withstand temperatures of up to 420ºC. Stellite hardened stainless steel seat. Bolt-on bonnet. Indicated for conducting and strangling the passage of aqueous media, oil and gas. testing according to API 598. Material available SS316 SS304, CE and BV certificated.
ANSI 150# SS316 GLOBE VALVE
Feature:
• ANSI 150# Flange Connection
• Size: 1" – 1 1/2”
• Valve Body Material: SS316
• Working Pressure: 150 PSI
• Applicable Medium: General oil , gas and water applications
• Temperature range: -29°C to 425°C
|
No |
Part Name |
Material |
|---|---|---|
|
1 |
Body Seat |
ASTM A182 F316 |
|
2 |
Disc |
ASTM A182 F316 |
|
3 |
Stem |
ASTM A182 F316 |
|
4 |
Gasket |
SS316 + Graphite |
|
5 |
Bonnet |
ASTM A182 F316 |
|
6 |
Bonnet Bolt |
ASTM A193 B8M |
|
7 |
Packing |
Graphic |
|
8 |
Pin |
ASTM A182 F316 |
|
9 |
Gland |
ASTM A182 F316 |
|
10 |
Gland Flange |
ASTM A182 F316 |
|
11 |
Gland Bolt |
ASTM A193 B8M |
|
12 |
Gland Nut |
ASTM A194 8M |
|
13 |
Yoke Steeve |
STM A276 410 |
|
14 |
Lock Nut |
Carbon Steel |
|
15 |
Handwheel |
ASTM A197 |
|
NPS |
Q |
D |
D1 |
D2 |
L |
W |
H |
B |
F |
n-Øz |
|---|---|---|---|---|---|---|---|---|---|---|
|
1" |
18 |
108 |
79 |
51 |
127 |
125 |
203 |
14 |
1.3 |
4-Ø16 |
|
1 1/4" |
23 |
117 |
89 |
63.5 |
140 |
160 |
224 |
16 |
1.3 |
4-Ø16 |
|
1 1/2" |
30 |
127 |
98.5 |
75 |
165 |
160 |
260 |
17.5 |
1.3 |
4-Ø16 |
